Dropdown

Choose from a list of values, including the controller's TP programs.

CONTROLREQUIRES A TAG

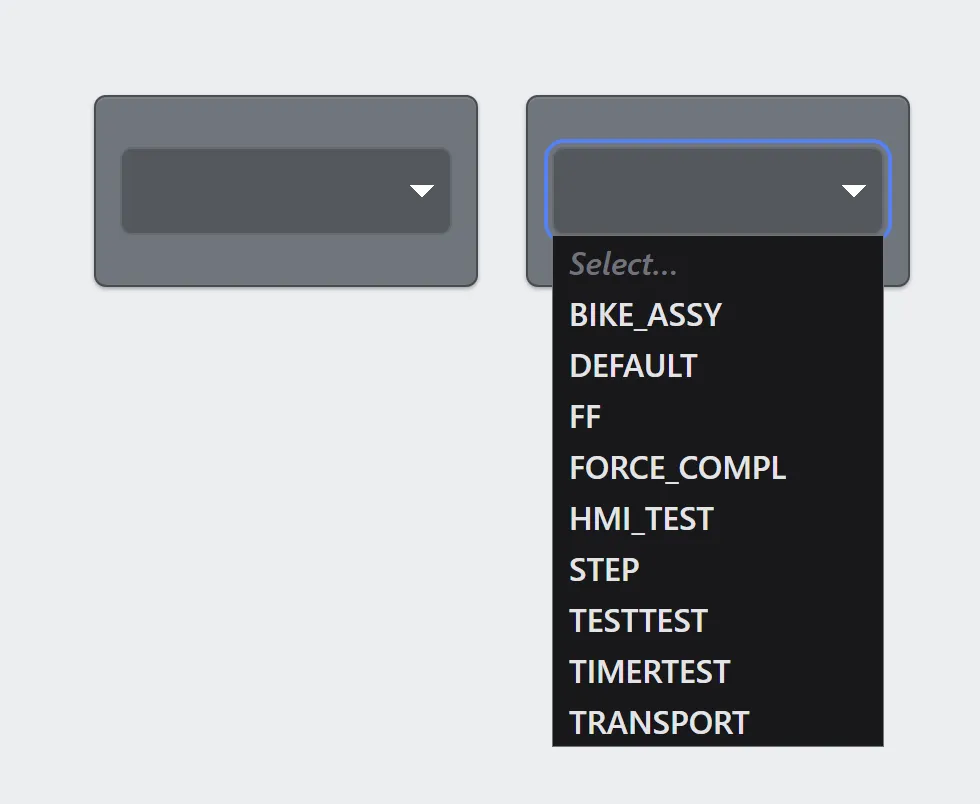

Two dropdowns, one closed and one open showing a list of controller program names.

Closed, and open on a controller's TP programs. The placeholder heads the list until something is chosen.

A dropdown writes the selected option’s value to a tag. Options are either a fixed list you type, or the TP programs actually present on the controller.

Bound to active_program, it lets an operator choose which program the controller has selected without leaving the HMI for the pendant menus.

Adding the control

Open the document and select the screen you want from the screen tabs.
In the control palette, press Dropdown and drag it onto the canvas.
Bind it to a tag, then either add options or switch the source to the controller’s programs.

Like every control an operator aims at, it cannot be smaller than 96 × 48 px.

Properties

Property	Description	Default
Label	Text shown above the control.	none
Tag	Where the selected value is written.	none
Options source	A static list, or the controller’s TP programs.	static
Options	Label and value for each choice, when the source is static.	none
Program filter	Restrict the program list to names matching a pattern.	none
Placeholder	Shown when nothing is selected.	`Select…`
Size	Text size in pixels.	`16`
Fill / Text color	Appearance.	theme tokens
On select	Actions that run after the operator picks an item.	none

The label an option shows and the value it writes are separate, so a list can read Station 1, Station 2 while writing 1, 2.

Changing the selected program

Bind a dropdown to active_program — under System values in the tag picker — and choosing an option changes what the controller has selected.

If a program is running or paused when the operator picks another, they are asked first, and it is aborted before the change — never after. Selecting the program that is already up does nothing rather than interrupting it.

Running actions on a selection

On select holds the same action list a button does, so picking an item can do more than write a tag — reset a counter when the part changes, navigate to the screen for the recipe just chosen, call an HTTP endpoint.

They run only when an operator picks something. A dropdown also reflects its tag changing underneath it — a TP program writing the recipe number, say — and actions do not run for that.

They run after the tag is written, so an action reading that tag sees the new selection. On a dropdown bound to the program list, they run only if the change actually took: a program change the operator cancels runs nothing.

Program control — Start, Hold, Reset and Abort for the program a dropdown selects.
Tags — naming the tag a selection is written to.
System values — active_program and friends.
